BD406 & PBD406 Emergency Beacon Locator
Civil & Military Aircrew | Emergency Beacon Locator | Personal Locator Beacon | Search & Rescue
High perfomance emergency signal decoder, providing rescue crews and first responders with highly accurate GPS position information of aircraft in distress. Available in panel mount or portable versions.

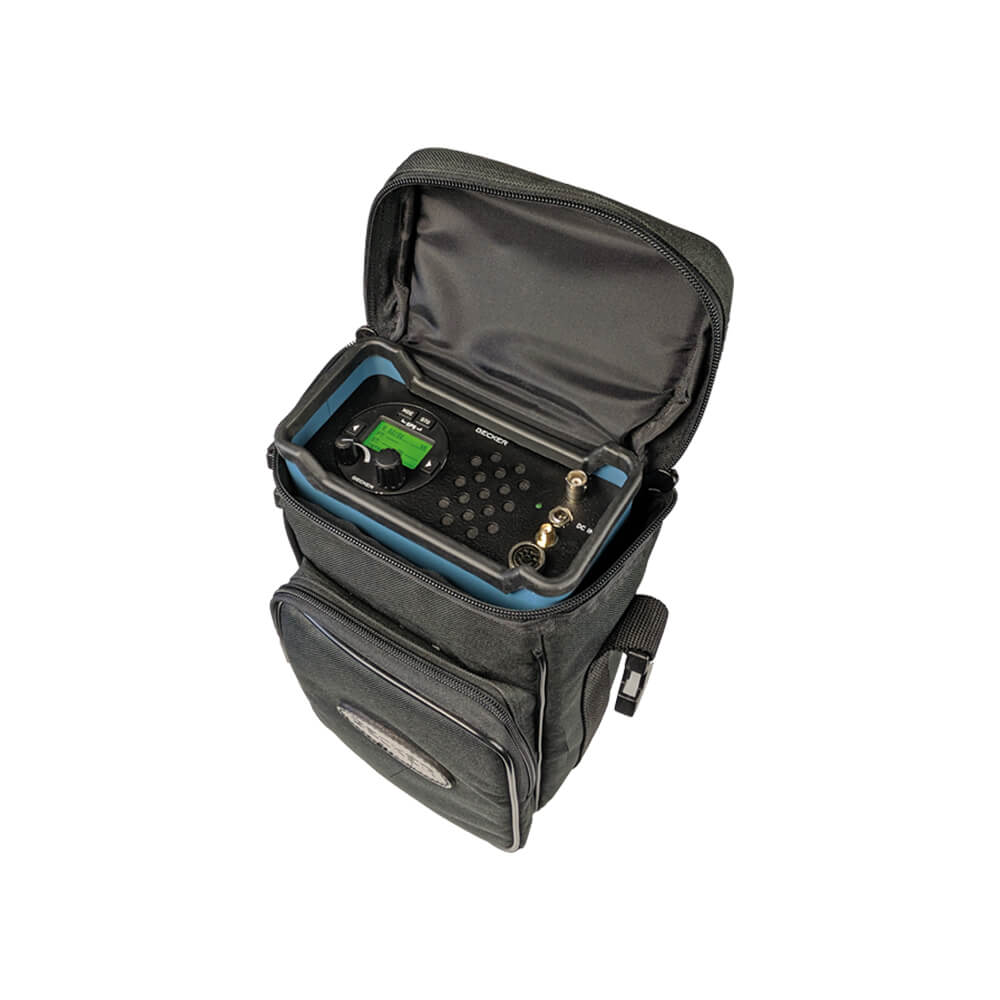

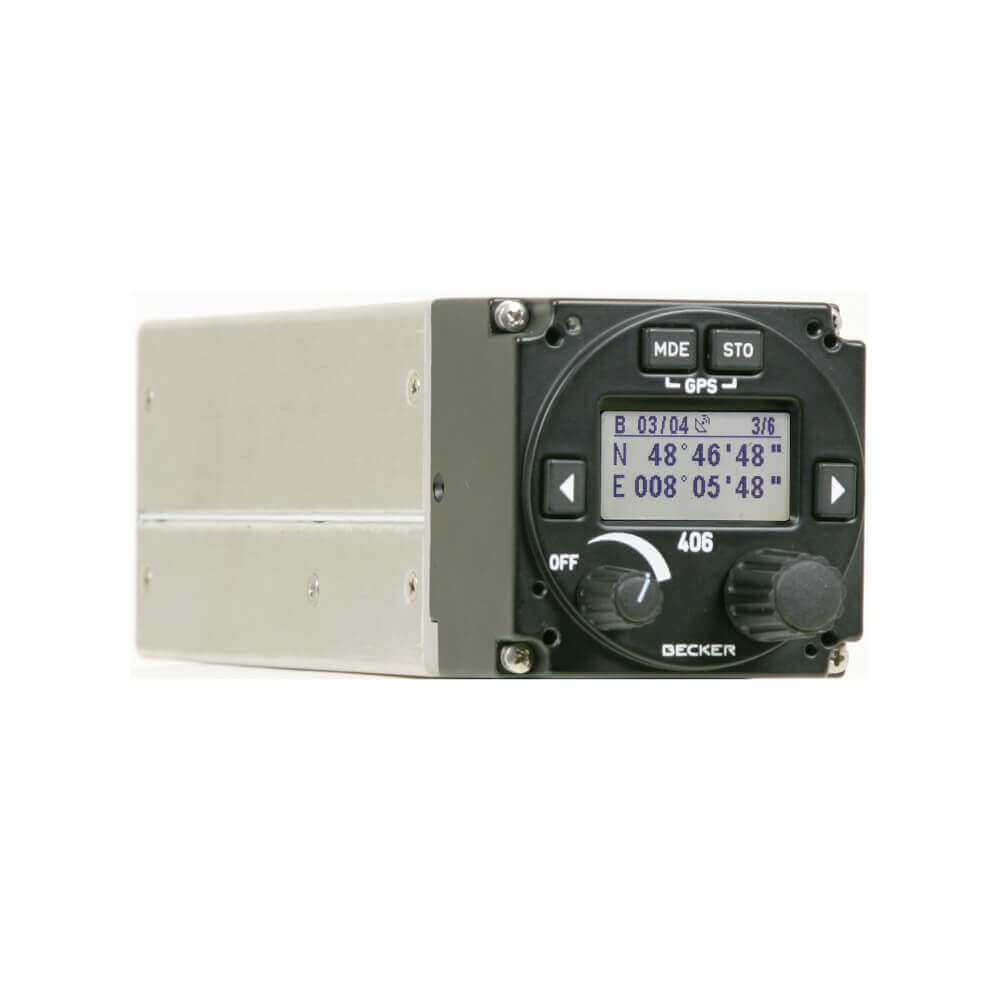

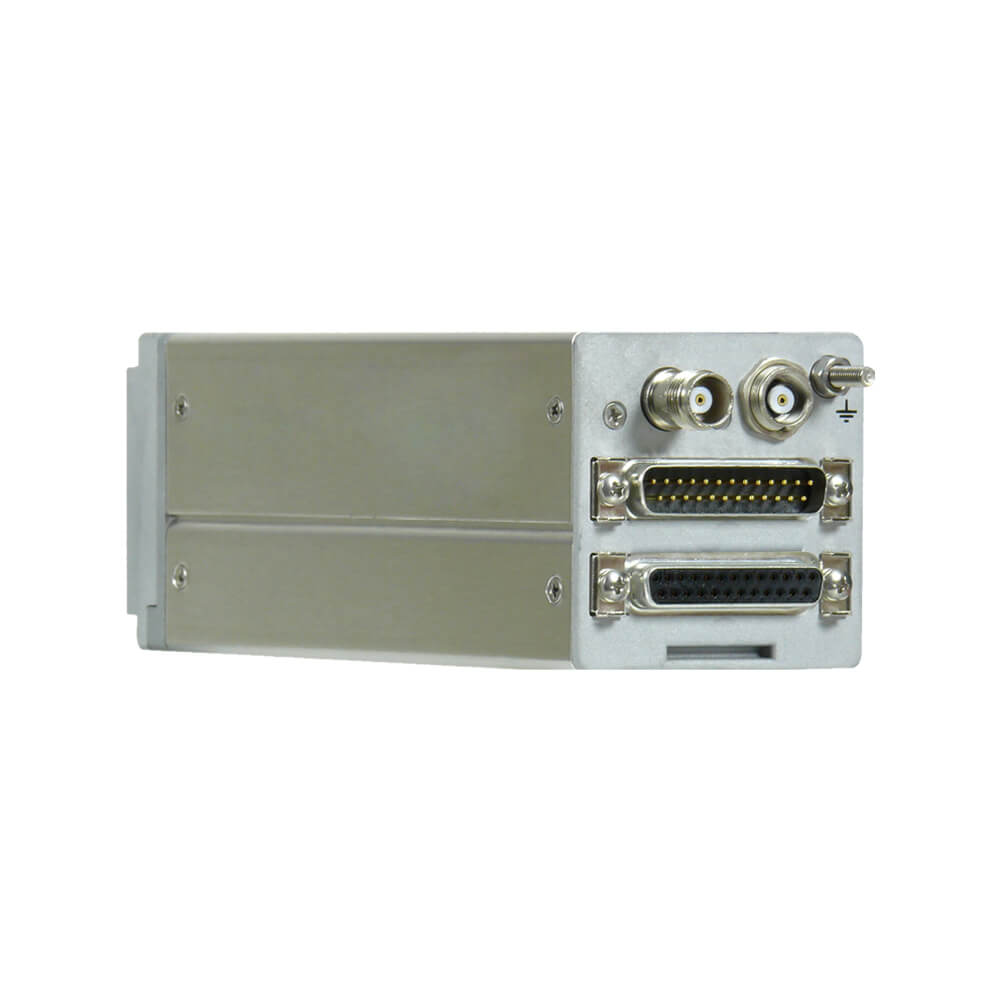

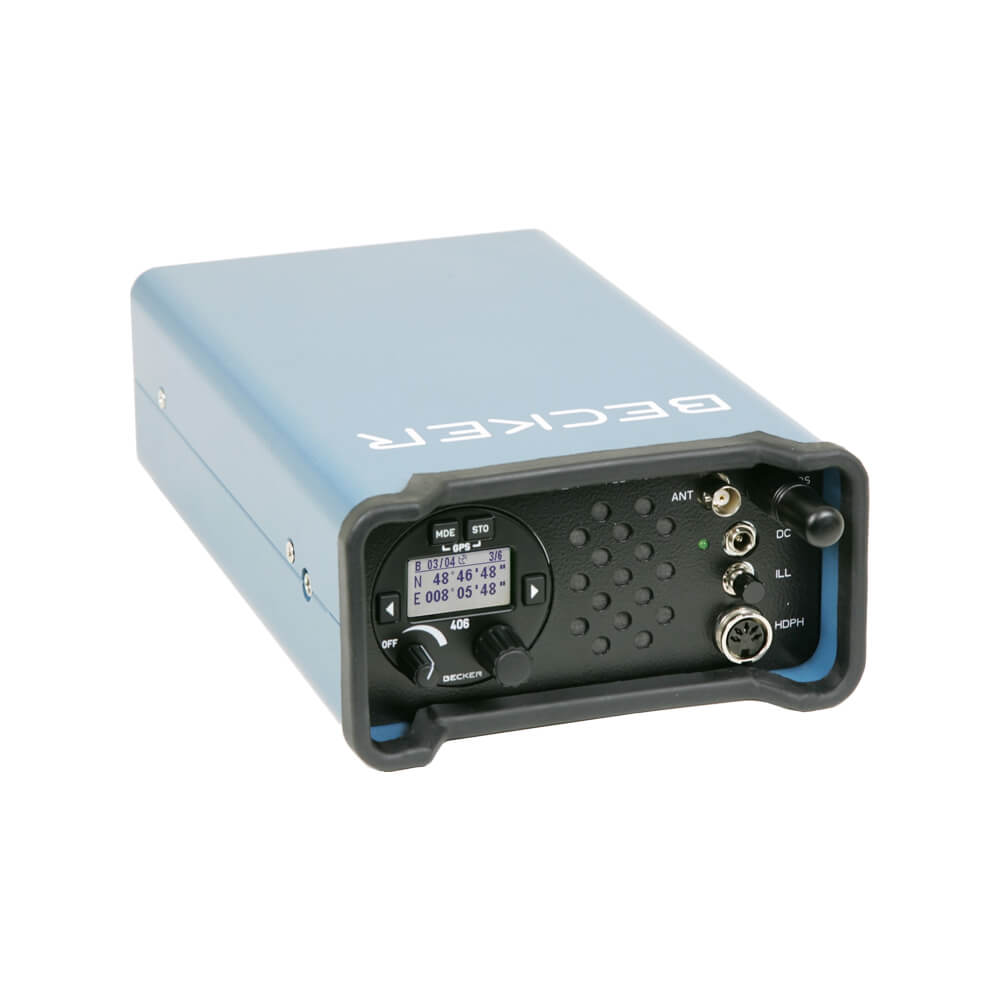

The BD406 is a high-performance monitoring device that receives and decodes signals transmitted by emergency radios (ELTs for aviation use, EPIRBs for maritime use, and PLBs for personal use) during distress situations. The BD406 is intended for immediate and direct detection of distress messages (transmitted on 406 MHz). The BD406 decodes the positions of radio beacons contained in the transmitted message and shows its relative position. The PBD406 is the portable version of the BD406.
Downloads
Features
- Real-time 406 MHz beacon monitoring by scanning up to 16 channels
- Displays 406 MHz frequency and decodes the full distress message
- Indicates the elapsed time since last message was received in seconds
- Sensitivity > – 104 dBm / 1.4 μV / 50Ω
- Computes and indicates via GPS the navigation route to the emergency beacons
- Tracks and Identifies each target (up to 10 targets) and displays the 15 digit C/S Hex ID Code
- Qualified according to DO-160D standard
- NVG-friendly backlit Display
- Power 9 V DC to 36 V DC (panel mounted) and AC adapter for portable system
- ARINC 429 output (BD406 only)
- Weight of BD406 less than 2.4 lbs / 1.1 kg
- Weight of PBD406 approx. 12.125 lbs / 5.5 kg
Benefits
- Direct navigation mode toward the position of the distress beacon
- Complimentary solution to existing homing systems without 406 MHz detection capability
- Portable or panel mount 2 ¼ inch design
- Highly sensitive decoder to receive distress signals over long distances and in adverse conditions
- Displays the exact position and identity of the beacon
- Optional for use as a SAR monitoring system for airport services
Manufacturer & Distribution
Manufacturer: Becker Avionics GmbH
Distributor / Sales: BECKER AVIONICS East Europe, s. r. o.
Becker Avionics East Europe provides regional sales and support for Becker Avionics products across Eastern Europe, the Middle East, Africa and selected regions of Asia.
Product specifications and compatibility may vary depending on aircraft configuration and certification requirements. Becker Avionics and related product names are registered trademarks of Becker Avionics GmbH.
